Highway Automatic Traffic Barrier Gate AC110V 60Hz 80W with RS485

Highway Automatic Traffic Barrier Gate AC110V 60Hz 80W with RS485
Highway Automatic Traffic Barrier Gate AC110V 60Hz 80W with RS485

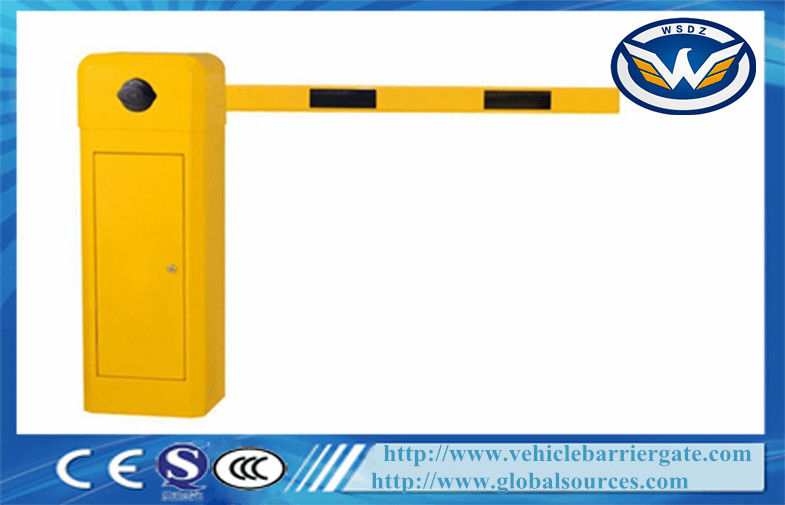

Hình ảnh lớn :  Highway Automatic Traffic Barrier Gate AC110V 60Hz 80W with RS485

Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: WONSUN
Chứng nhận: CE, ISO, SGS
Model Number: WST-115
Thanh toán:
Số lượng đặt hàng tối thiểu: 1pc
Giá bán: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Thời gian giao hàng: 3-7 ngày làm việc sau khi nhận được thanh toán của bạn
Điều khoản thanh toán: T / T, Công Đoàn phương tây, Money Gram, Thương Mại Alibaba Đảm Bảo, Paypal vv,
Khả năng cung cấp: 1000 bộ / tháng

Highway Automatic Traffic Barrier Gate AC110V 60Hz 80W with RS485

Sự miêu tả
Arm material: Aluminum alloy Housing material: 2mm cold roller steel plate
Arm width & Height: 100 * 45 mm Open / closing time: 3s, 6s
Housing dimension: 325 * 280 * 936 mm Power supply: AC 220V / 110V
Điểm nổi bật:

access control barriers and gates

,

parking barrier gates

Highway Automatic Traffic Barrier Gate AC110V 60Hz 80W with RS485


Quick Detail:

Name: Traffic Barrier Gate
Speed:1.8s seconds
Feature:Straight boom
Relative humidity: ≤90%RH
Remote control distance: 30m≤ L ≤ 100m


Model Selection and Differences



Model

Boom Shape

Max Boom Length

Speed

WST1151

Straight boom

6m

6 seconds

WST1152

Straight boom

4.5m

3 seconds

WST11521

90 degree, Articulated boom

5m

6 seconds

WST11522

90 degree, Articulated boom

3m

3 seconds

WST11561

180 degree, Articulated boom

5m

6 seconds

WST11562

180 degree, Articulated boom

3m

3 seconds

WST11581 Two fence boom 4.5m 3s and 6s
WST11582 Three fence boom 4.5m 3s and 6s



















Functions & Features

1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)

Specifications



Power supply AC220V+-10% 50HZ/60HZ or AC110V+-10% 50HZ/60HZ
Net Weight 46KG (exclude the boom)
External Dimensions 340* 280*1000mm
Time for Up/Down (1m-3m)1.5s/(4m-6m)6s
Working Environment -20 to +55 celsius degree
Working Distance ≤50m
Protection Class IP44
Max. boom length 6m
Package one set in one carton



With WONSUN, your job gets easier.

Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.


Service items


1. One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltae.



WSTP-115 Yellow_pdf.pdf
