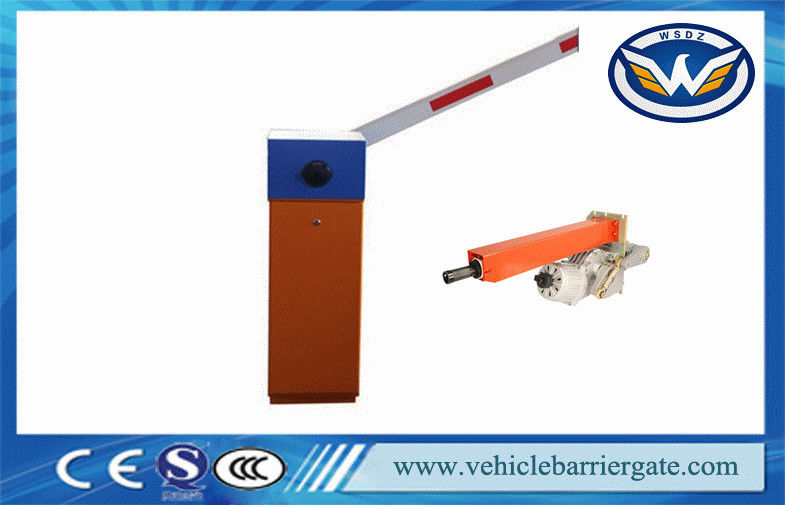

Parking System 4S Automatic Barrier Gate With Loop Detector / Photocell

Parking System 4S Automatic Barrier Gate With Loop Detector / Photocell

What is the davantages of Wonsun barriers?

1)The humanized clutch device:in case of power off, unlock the clutch device and raise the boom manufally. By the time the power is supplied, lick the clutch device to make it working normally again.

2)Special spring device:Both the compression spring and tension spring can be used in the machine, Using the compression sprin can avoid accidents caused by the tension spring.

3)Three control buttons:for boom raising, falling and pausing.

4)Boom backtrack function:the boom will rise if hits something when falling.

5)Infrared photocell design:for avoiding the crash when the boom falling, so as to prevent the vehicles from being pressed.

6)Both external and internal loop detectors are supported.

7)"open","close" and "stop" controlling interfaces.

8)RS-485 communication serial interface(optional)

9)Traffic light signal connection device: red light for stop,green light for pass.

10)Remote control and wire control for selection.

Model Selection and Differences

Specifications

 1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book

Communication with customers

1)     Q: Connected power and press open/close button but traffic barrier gate no action?


2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?



3)   Q: Motor running but traffic barrier gate arm no action?



4)  Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?


Basic Features:

1)By-security. the barrier gate will automatically go back when meet obstacles during closing.

2)AC motor is more powerful and no maintenance.

3)Barrier Boom/arm can be chosen from 3 meters to 6 meters, and barrier gate.

4)Closing time is also arranged from 1 second to 6 seconds.

5)The barrier gate can be both right-installed and left-installed.

6)All the operation process is soft without any noise and shaking.

7)Infrared photocell interface, loop detector interface and IC system.

8)interface are reserved for the other functions.

9)Green light and red light are used inside for indication the position of the boom

Advanced Features:

1)clutch key can be used to open the clutch when power off.

2)Fan cooling machine reduce the motor temperature by high frequency using, never get heat-protecting, unique temperature calefaction design for low temperature using, prevent freezing in cold weather.

3)Exactitude aluminium alloy die-casting motor base reduce the noise and joint abrasion to prolong the barrier gate working life.
