OEM Manual Realese Automatic Parking Boom Barrier Gate For Airport / Hotel
| Place of Origin | China |
|---|---|
| Hàng hiệu | WONSUN |
| Chứng nhận | CE, ISO, SGS |
| Model Number | DZTP-139-B |
| Số lượng đặt hàng tối thiểu | 1pc |
| Giá bán | negotiation |
| Packaging Details | Packed in bubble wrap firstly, and then reinforced with carton for outer packing. |
| Thời gian giao hàng | 3-7 ngày làm việc sau khi nhận được thanh toán của bạn |
| Điều khoản thanh toán | T / T, Công Đoàn phương tây, Money Gram, Thương Mại Alibaba Đảm Bảo, Paypal vv, |
| Khả năng cung cấp | 1000 bộ / tháng |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xThông tin chi tiết sản phẩm
| Color | yellow, orange, blue, customized optional | Material | 2.00mm Cold Roll Plate Or Galvanized Plate |
|---|---|---|---|
| Features | Heavy duty, manual release, swing out, remote control | Direction | Left or right |
| Speed | 0.6s, 1s, 1.8s, 3s, 6s | Boom Barrier Gate used for | Parking lots, Toll System, Airport, Hotel, Residential |
| Điểm nổi bật | electric barrier gate,auto barrier gate |
||
Mô tả sản phẩm

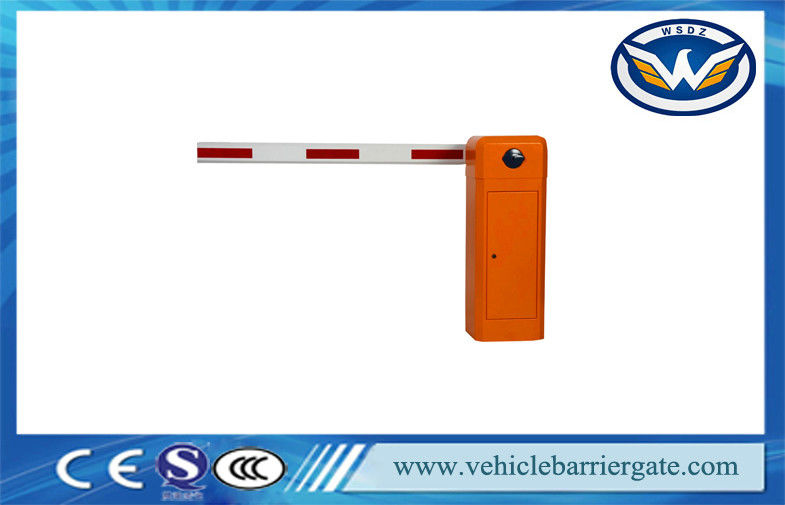

OEM Manual Realese Automatic Parking Boom Barrier Gate For Airport / Hotel
Applications:
Fast Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably.
The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.
Functions & Features
1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)
Specifications:
| Model |
DZTP-139-B (WONSUN 1st generation machine core) |
| Power |
80w |
| Material |
Cold roll plate, Galvanized plate or stainless steel varnish baking, 3 years without fading |
| Running Time |
0.6s, 1s, 1.8s, 3s, 6s |
| Operating Temperature |
-45°C to 75°C |
| Voltage: |
220V ± 10%, 110V ± 10% |
| Relative Humidity |
<90% coagulation free |
| Motor speed |
30r/min |
| Boom length |
Max 6 meters |
| Net weight: |
50Kg |
| MCBF |
≥5, 000, 000 times |
| Housing Size |
320*280*935mm |
| Traffic light |
Optional |
| Rail material |
Aluminum Alloy |
| Boom Type |
Straight arm: Mar 1- 6 meters optional, size 45×100mm aluminum alloy. Folding arm: 90°folding arm / 180°folding arm, aluminum alloy Fence arm: Two or three fence arm, Mar1- 6 meters, aluminum alloy |
| Related accessories |
infrared sensors, loop detectors,traffic light, UHF readers |
| Application |
Parking Lots, Toll Gates, Goods Yards, Railway Crossings, |
| Advantages |
1. quick delivery time, 3-5 days for 50 sets after received advance deposite 2. 7 years OEM/ODM experience 3. quick response for handling problems |
| Our other products |
WONSUN has other products: tripod turnstiles, sliding gate motor, flap barrier,swing gate motor, pedestrian access control turnstiles and barriers, |
Parking & Shipping:
| Packing list | |||
| Name | Specifications | Quantity | Remarks |
| Machine core | Good in working | 1 | Main part |
| Barrier arm | Straight, folding or fence arm | 1 | Optional |
| Boom press board | 1 | Fixing the boom | |
| Self-tapoing screw | ST4*16 | Fixing the boom | |
| Self-tapoing screw | st3*10 | 4 | Fixing the boom |
| Supporting pole | 1 | Fupporting the boom | |
| Expanion bolt | M16*150 | 4 | Fixing the case |
| Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
| Clutch key | 1 | clutch device | |
| Case Key | 2 | for case and cover locking | |
| Balance spring | According to length of barrier arm | 1 | for sapre usage |
| Remote emitter | less than 30m is available | 1 | For remote control |
| Remote conrol handles | less than 30m is available | 2 | For remote control |
| Instruction | in English | 1 | For reference |
| RS485 interface | 1 | Optional | |
| Disc | 1 | Optional | |
| Communication Mould | 1 | Optional | |
| Cover head | 1 | 3 years without fading | |
| Expanion nut | M8 | 4 | Fixing the supporting pole |
FAQ:
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.
2. What is your MOQ?
As for usual order, there is no MOQ; For OEM order, at least 30 sets.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.
4. What is the terms of payment?
30%-40% advance deposite, 60%-70% balance before shipment for large quantity.
5. How long will your gate barrier working?
Gate barrier life span is 5-10 years.
6. What should we do if there have problems during using?
My dear friend, We have 1 year guarantee. Any gate barrier problems you have, Welcome email or
call me! We will provide our best professional service for you.
7.How to import your machines?
* We will prepare gate barrier and shipment for you after payment;
*We will give you bill of loading after gate barrier depart our shipping port;
*Our shipping agent will contact you when gate barrier arrival
