Electronic Automatic Boom Barrier Gate For Driveway Car Parking System

Nguồn gốc China
Hàng hiệu WONSUN
Chứng nhận CE, ISO, SGS
Số mô hình WSTP-115
Số lượng đặt hàng tối thiểu 1pc
Giá bán negotiation
chi tiết đóng gói Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Thời gian giao hàng 3-7 ngày làm việc sau khi nhận được thanh toán của bạn
Điều khoản thanh toán T / T, Công Đoàn phương tây, Money Gram, Thương Mại Alibaba Đảm Bảo, Paypal vv,
Khả năng cung cấp 1000 bộ / tháng

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Thông tin chi tiết sản phẩm
Speed 0.6s, 1s, 1.8s, 3s, 6s Power Supply AC 220±10%, 110±10% 50/60HZ
Boom Barrier Gate used for Parking lots, Toll System, Airport, Hotel, Residential Product name Electronic Automatic Boom Barrier Gate Price For Driveway Car Parking System
Working temperature -40°to 85° Features Heavy duty, manual release, swing out, remote control
Điểm nổi bật

An ninh Boom Gate

,

Hàng rào điện bùng nổ

Để lại lời nhắn
Mô tả sản phẩm

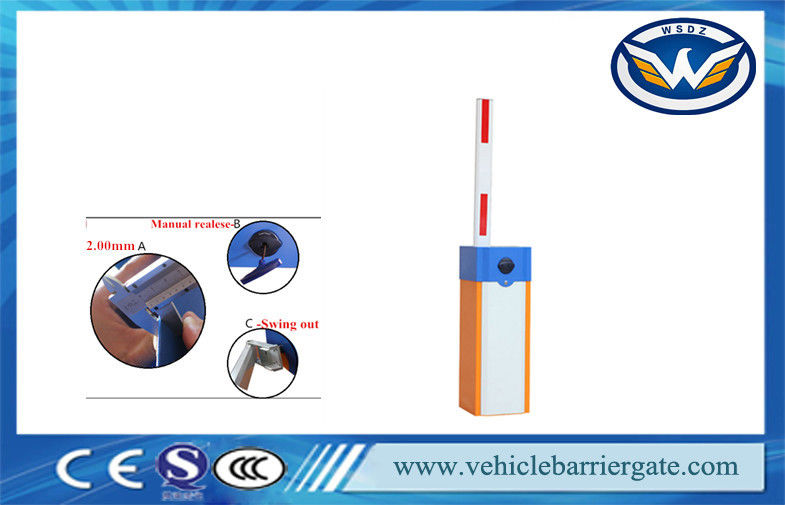

Electronic Automatic Boom Barrier Gate For Driveway Car Parking System

Why choose us?
1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.


Basic Features:

1) By-security. the barrier gate will automatically go back when meet obstacles during closing.
2) AC motor is more powerful and no maintenance.
3) Barrier Boom/arm can be chosen from 3 meters to 6 meters, and barrier gate.
4) Closing time is also arranged from 1 second to 6 seconds.
5) The barrier gate can be both right-installed and left-installed.
6) All the operation process is soft without any noise and shaking.
7) Infrared photocell interface, loop detector interface and IC system.
8) interface are reserved for the other functions.
9) Green light and red light are used inside for indication the position of the boom


Advanced Features:
1) clutch key can be used to open the clutch when power off.
2) Fan cooling machine reduce the motor temperature by high frequency using, never get heat-protecting, unique te mperature calefaction design for low temperature using, prevent freezing in cold weather.
3) Exactitude aluminium alloy die-casting motor base reduce the noise and joint abrasion to prolong the barrier gate working life.


Specifications

Model

WST1211

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP44





Parking & Shipping:

1. Strong carton case with cushion for safety, air bubble film inside for protect  ing the apperance from damaging.
2. As for wooden crate packing, it is USD$ 10/ps; for wooden case packing, it is USD$ 32/ps.
3. As for shipping, we can send you the goods by air, sea and express, which according to your detail requirements.

1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book


Air

As for shipment by Air, if you really need the product for installation, and for airplane, there is length limitation, can not over 3m, so we suggest u not shipping with arm

SeaAs for shipment by Sea, we can provide FOB, C&F, CIF, DDP and DDU, which can satisfy all your requirements by Sea
Express

 For Express, there is less customer choose it for shipment, because for its price, it is
high, but not quicker than Airplane, and also there is limitation of length, but if you want to shipment by Express, we also can provide you this service.













Communication with customers

1)     Q: Connected power and press open/close button but automatic barrier gate no action?


A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button, automatic barrier gate will move but even when it is at right position, the motor still running and not stop?

A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3)   Q: Motor running but automatic barrier gate arm no action?

A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


 4)  Q: When opening/closing, automatic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?

A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal position
