Electric Auto Barrier Gate Arms Barrier Gates With Anti Collision

Nguồn gốc China
Hàng hiệu WONSUN
Chứng nhận CE, ISO, SGS
Số mô hình WSTP-126
Số lượng đặt hàng tối thiểu 1pc
Giá bán negotiation
chi tiết đóng gói Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Thời gian giao hàng 3-7 ngày làm việc sau khi nhận được thanh toán của bạn
Điều khoản thanh toán T / T, Công Đoàn phương tây, Money Gram, Thương Mại Alibaba Đảm Bảo, Paypal vv,
Khả năng cung cấp 1000 bộ / tháng

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Thông tin chi tiết sản phẩm
Power Supply AC 220±10%, 110±10% 50/60HZ Working temperature -40°to 85°
Product Name 2016 Newest Model Intelligent Barrier Gate With Anti-Collision Operation time 0.6s, 1s, 1.8s, 3s, 6s
Color yellow, orange, blue, customized optional Material 2mm Cold Roll Plate Or Galvanized Plate
Điểm nổi bật

parking lot gate arms

,

Giao thông hàng rào Gate

Để lại lời nhắn
Mô tả sản phẩm

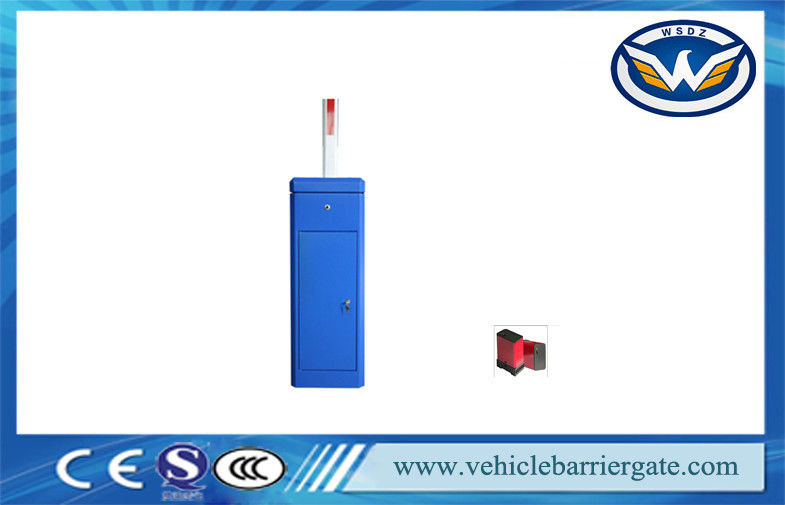

Electric Auto Barrier Gate Arms Barrier Gates With Anti Collision




Specifications:



Model



WSTP-126  (WONSUN 1st generation machine core)

Power



120w

Material



Cold roll plate, Galvanized plate or stainless steel

varnish baking, 3 years without fading

Running Time



0.6s, 1s, 1.8s, 3s, 6s

Operating Temperature



-45°C to 75°C

Voltage:



220V ± 10%, 110V ± 10%

Relative Humidity



<90% coagulation free

Motor speed



30r/min

Boom length



Max 6 meters

Net weight:



50Kg

MCBF



≥5, 000, 000 times

Housing Size



320*280*935mm

Traffic light



Optional

Rail material



Aluminum Alloy

Boom Type



Straight arm: Mar 1- 6 meters optional, size 45×100mm  aluminum

 alloy.

Folding arm: 90°folding arm / 180°folding arm, aluminum alloy

Fence arm: Two or three fence arm, Mar1- 6  meters, aluminum alloy

Related accessories



infrared sensors, loop detectors,traffic light, UHF readers

Application



Parking Lots, Toll Gates, Goods Yards, Railway Crossings,
Commercial Premises, Aparment Block

Advantages



1. quick delivery time, 3-5 days for 50 sets after received advance deposite

2. 7 years OEM/ODM experience

3. quick response for handling problems

Our other products



WONSUN has other products: tripod turnstiles,  sliding gate motor,

flap barrier,swing gate motor,

pedestrian access control turnstiles and barriers,
and other related accessories.







Functions & Features:


1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by

spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)





Arm optional:



1. Straight boom arm length is 1-6 m, Speed time is 6S

2. Straight boom arm length is 1-4.5m. Speed time is 1.8s

3. Straight boom arm length is 1-3 m, Speed time is 1s

4. Straight boom arm length is 1-2.5m, Speed time is 0.6s





Parking & Shipping:



Packing list
Name Specifications Quantity Remarks
Machine core Good in working 1 Main part
Barrier arm Straight, folding or fence arm 1 Optional
Boom press board   1 Fixing the boom
Self-tapoing screw ST4*16 Fixing the boom
Self-tapoing screw st3*10 4 Fixing the boom
Supporting pole   1 Fupporting the boom
Expanion bolt M16*150 4 Fixing the case
Hexagonal Inner Screw M8*35 4 fixing the case
Clutch key   1 clutch device
Case Key   2 for case and cover locking
Balance spring According to length of barrier arm 1 for sapre usage
Remote emitter less than 30m is available 1 For remote control
Remote conrol handles less than 30m is available 2 For remote control
Instruction in English 1 For reference
RS485 interface   1 Optional
Disc   1 Optional
Communication Mould   1 Optional
Cover head   1 3 years without fading
Expanion nut M8 4 Fixing the supporting pole






Service for free:


1. One year free service is supplied(not including the arm)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.



Service for charging:



1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.





FAQ:



1. Are you manufacturer or trade company?

We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.



2. What is your MOQ?

As for usual order, there is no MOQ; For OEM order, at least 30 sets.



3. What is your delivery time?

As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.

For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.



4. What is the terms of payment?

30%-40% advance deposite, 60%-70% balance before shipment for large quantity.



5. How long will your gate barrier working?

 Gate barrier life span is 5-10 years.



6. What should we do if there have problems during using?

 My dear friend, We have 1 year guarantee. Any gate barrier problems you have,

Welcome email or call me! We will provide our best professional service for you.





Why choose us?


1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.
