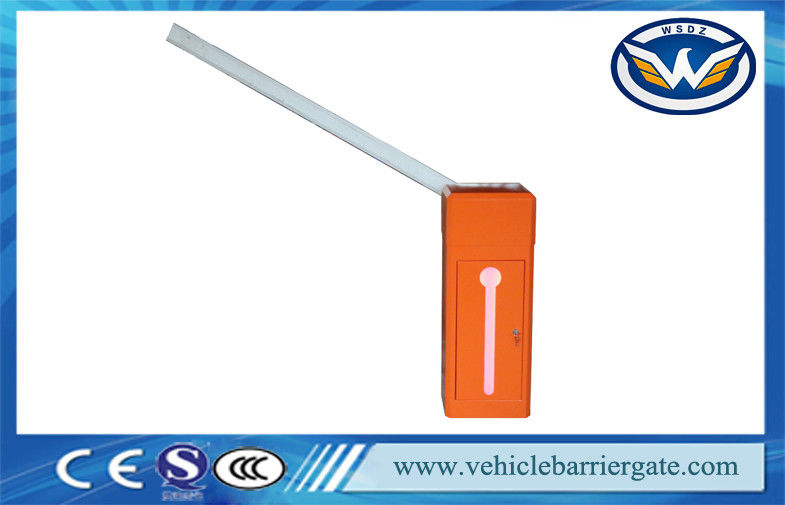

Straight Boom Parking Lot Barrier Gates With RS485 Remote Control
| Place of Origin | China |
|---|---|
| Hàng hiệu | WONSUN |
| Chứng nhận | CE, ISO, SGS |
| Model Number | WSTP-127 |
| Số lượng đặt hàng tối thiểu | 1pc |
| Giá bán | negotiation |
| Packaging Details | Packed in bubble wrap firstly, and then reinforced with carton for outer packing. |
| Thời gian giao hàng | 3-7 ngày làm việc sau khi nhận được thanh toán của bạn |
| Điều khoản thanh toán | T / T, Công Đoàn phương tây, Money Gram, Thương Mại Alibaba Đảm Bảo, Paypal vv, |
| Khả năng cung cấp | 1000 bộ / tháng |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xThông tin chi tiết sản phẩm
| Power Supply | AC 220±10%, 110±10% 50/60HZ | Working temperature | -40°to 85° |
|---|---|---|---|
| Color | yellow, orange, blue, customized optional | Material | 2mm Cold Roll Plate Or Galvanized Plate |
| Features | Heavy duty, manual release, swing out, remote control | OEM/ODM | Supported |
| Điểm nổi bật | car park barrier gate,auto barrier gate |
||
Mô tả sản phẩm
Newest Model Automatic Barrier Gate With RS485 Remote Control
Key words:boom barrier, barrier gate, car park barrier, barrier gate system, gate barrier, traffic barrier, automatic barrier, car parking system, barrier system, parking barrier, road barrier, intelligent automatic barrier.
Quick details:
Model: WSTP-127
1. Straight boom arm length 1-6 m, Speed time is 6S/4s
2. Straight boom arm length 1-3.5m. Speed time is 1.8s
3. Straight boom arm length 1-3 m, Speed time is 1s
4. Straight boom arm length 1-2.5m, Speed time is 0.6s/0.8s
Gate Arm Type:
1. Straight arm lengt size : 100*45mm. 80*45mm. 2.Retractable arm size: 86*45mm
Specifications:
| Model | WSTP-127 |
| Size | 320*280*935 mm |
| Voltage | AC 220V/110V±10%, 50/60HZ |
| Rated Power | 120W |
| Operation time | 0.6s, 1s, 1.8s, 3s,4s,6s. Customized |
| Working Temperature | -40℃~+75℃ |
| Material |
Galvanized plate or Cold roll plate, 2.0mm thickness sheet 3 years without rust, shedding and fading |
| Spring And Bearing | Heat Treatment: more durable, more than 5 million times through operation testing |
|
Remote Control Distance
|
Usually more than 30 meters, if there is less obstacles, even 50 meters or more |
| Packing Size | 1020*375*467mm , with seven layers carton case
inside with air bubble film for protection |
| Delivery | By Sea: big order(more than 100 sets), Cheap, suggested
By Air: small order(1-15 sets), quick and cheap, suggested |
Functions & Features:
1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)
Parking list:
| Items | quantity | items | quantity |
| Paint-coated case | 1 | motor | 1 |
| Transmission | 1 | limit switch | 1 |
| Barrier arm | 1 | capacitor | 1 |
| Spring | 1 | circuit board | 1 |
| Remote control device | 2 | console control device | 1 |
| Installation kit | 1 |
FAQ:
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.
2. What is your MOQ?
As for usual order, there is no MOQ; For OEM order, at least 30 sets.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.
4. What is the terms of payment?
30%-40% advance deposite, 60%-70% balance before shipment for large quantity.
5. How long will your gate barrier working?
Gate barrier life span is 5-10 years.
6. What should we do if there have problems during using?
My dear friend, We have 1 year guarantee. Any gate barrier problems you have, Welcome email or
call me! We will provide our best professional service for you.
