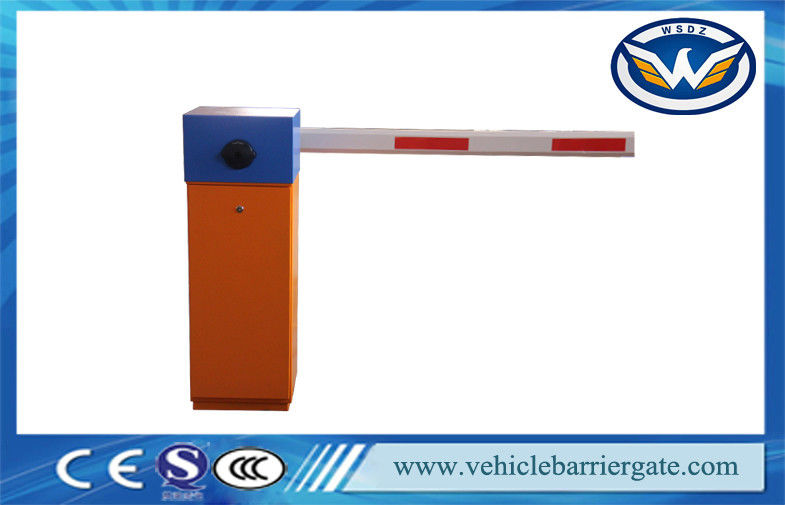

Colored Parking Barrier Gate , Aluminum Boom Car Park Barrier Systems
Place of Origin | China |
---|---|
Hàng hiệu | WONSUN |
Chứng nhận | CE, ISO, SGS |
Model Number | WSTP-125 |
Số lượng đặt hàng tối thiểu | 1pc |
Giá bán | negotiation |
Packaging Details | Packed in bubble wrap firstly, and then reinforced with carton for outer packing. |
Thời gian giao hàng | 3-7 ngày làm việc sau khi nhận được thanh toán của bạn |
Điều khoản thanh toán | T / T, Công Đoàn phương tây, Money Gram, Thương Mại Alibaba Đảm Bảo, Paypal vv, |
Khả năng cung cấp | 1000 bộ / tháng |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct name | Aluminum Boom Barrier Parking Barrier Gate For Parking Lot System | Operation Time | 0.6s, 1s, 1.8s, 3s, 6s, Optional |
---|---|---|---|
Rating Voltage | AC 220/110V±10%, 50/60Hz | Color | yellow, Orange, Black, Blue, customize optional |
Arm material | Aluminum alloy | Housing Material | 2mm Cold Roll Plate Or Galvanized Plate |
Điểm nổi bật | boom barrier gate,Hàng rào điện bùng nổ |
Aluminum Boom Barrier Parking Barrier Gate For Parking Lot System
WONSUN SUMMER PROMOTION: BUY 20 SETS, GET 1 FOR FREE
IF INTEREST, PLEASE CONTACT ME FREELY!
SKYPE: zimin1314
Whatsapp: +86 18507481610
Technical data:
1) Beam length: <=6m
2) Opening (Closing) time: 1s, 1.8s,3s, 6s
3) Center height: 0.83m
4) Machine core working temperature: -40 degrees to +75 degrees
5) Electric working temperature: -20 degrees to +75 degrees
6) Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz
7) Rated power: 120W
8) Relative humidity: <=90%
9) Remote control distance: >=30m
10) Net weight: 55KGS
.Left or right installed can be amendable. Customer can amend install direction by himself;
.Accurate link mechanism: link mechanism can release arm’s shake and motor load, so the
.70W turbine worm transmission deceleration induction motor: Drive Steady, Noise Lower,
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Parking list:
1. Strong carton case with cushion for safety, air bubble film inside for protect ing the
apperance from damaging.
2. As for wooden crate packing, it is USD$ 10/ps; for wooden case packing, it is USD$ 32/ps.
3. As for shipping, we can send you the goods by air, sea and express, which according to your
detail requirements.
Items | quantity | items | quantity |
Paint-coated case | 1 | motor | 1 |
Transmission | 1 | limit switch | 1 |
Barrier arm | 1 | capacitor | 1 |
Spring | 1 | circuit board | 1 |
Remote control device | 2 | console control device | 1 |
Installation kit | 1 |
FAQ:
1. When barrier finish closing, why does the arm open itself slowly?
- the spring is too tight, you need release the spring a little, then test it again.
- see whether the main crank touch the triangle tightly or not, if tightly, adjust it.
- reset the balance position and the electrical limit switch.
2. Why does the controller panel operate with "Di Di Di" abnormal noises?
- As for this, it means the resistance on controller board is broken, if you have professional tools to check,
- then replace that broken resistance, if not, replace that controller panel.
3. Why does the barrier finish half operation of opening and closing?
- If uses our controller panel, you only need to find resistance R37 on controller panel, and repalce it is ok.
4. When barrier closed, why is there a 5 degree angle of inclination?
- the model is not good, and the gear doesn't fit each other tightly.
- the barrier didn't adjust well, need to reset.
5. When barrier finish open, but it closes itself without any order control, what's the problem?
- To check the loop cable first, because the loop cable maybe brokem
- To check the motor sensor, if it is not set well, then reset it in the middle between two holes on sensor rod.
