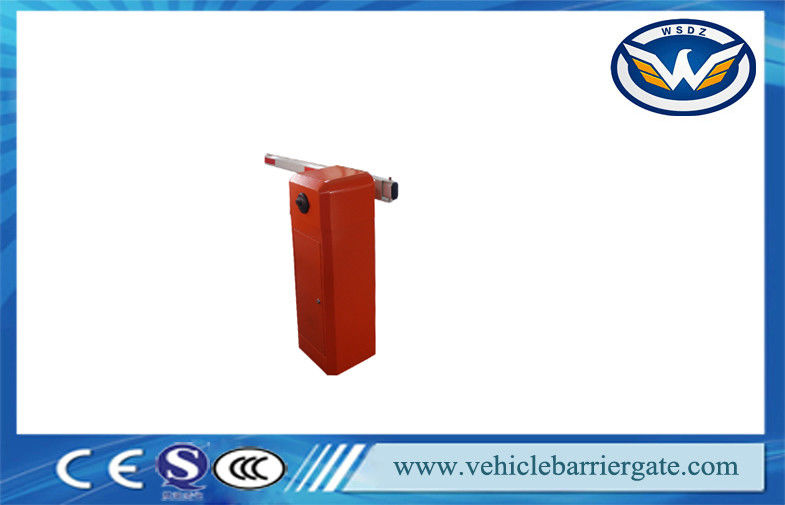

Arm Auto Reverse Automatic Boom Barrier With Long Range RFID Reader
Place of Origin | China |
---|---|
Hàng hiệu | WONSUN |
Chứng nhận | CE, ISO, SGS |
Model Number | WSTP-115 |
Số lượng đặt hàng tối thiểu | 1pc |
Giá bán | negotiation |
Packaging Details | Packed in bubble wrap firstly, and then reinforced with carton for outer packing. |
Thời gian giao hàng | 3-7 ngày làm việc sau khi nhận được thanh toán của bạn |
Điều khoản thanh toán | T / T, Công Đoàn phương tây, Money Gram, Thương Mại Alibaba Đảm Bảo, Paypal vv, |
Khả năng cung cấp | 1000 bộ / tháng |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xArm Length | 0.6s with 2.5m, 1s with 3m, 1.8s with 3.5m, 3s with 4.5m, 6s with 6m | Arm material | Aluminum alloy |
---|---|---|---|
Operation Time | 0.6s, 1s, 1.8s, 3s, 6s, Optional | Housing Material | 2mm Cold Roll Plate Or Galvanized Plate |
Product name | Arm Auto Reverse Automatic Boom Barrier With Long Range RFID Reader | Color | yellow, Orange, Black, Blue, customize optional |
Điểm nổi bật | An ninh Boom Gate,Hàng rào điện bùng nổ |
Arm Auto Reverse Automatic Boom Barrier With Long Range RFID Reader
WONSUN SUMMER PROMOTION: BUY 20 SETS, GET 1 FOR FREE
IF INTEREST, PLEASE CONTACT ME FREELY
SKYPE: zimin1314
Whatsapp: +86 18507481610
Quick details:
1) Beam length: <=6m
2) Opening (Closing) time: 1s, 1.8s,3s, 6s
3) Machine core working temperature: -40 degrees to +75 degrees
4) Electric working temperature: -20 degrees to +75 degrees
5) Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz
6) Rated power: 120W
7) Relative humidity: <=90%
8) Remote control distance: <=30m
9) Net weight: 55KGS
10) Package size: 1025*375*470mm
1) The top of cover is square and it looks elegant.
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Torque motor,steady,low noise,long life
5) This barrier gate provides optional case color as yellow/orange/white/red/blue
6) This automatic barrier gate provides optional boom arm direction as leftward/rightward
7) This type of barrier could match with direct boom( pole) , fold boom or fence boom.
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle,Auto-closing
7) Support the INFRARER PHTOCELL for anti-bumping function (optional)
8) Support the external and internal VEHICLE LOOP DETECTOR (optional)
9) Traffic light interface
10) Wire control (switch signal)/ Remote control (418MHZ)
11) RS485 communication module (optional)
Each barrier gate will include:
1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book
1 pair photocell( optional)
1 loop detector( optional)
1 RS485( optional)
FAQ:
1. When barrier finish closing, why does the arm open itself slowly?
- the spring is too tight, you need release the spring a little, then test it again.
- see whether the main crank touch the triangle tightly or not, if tightly, adjust it.
- reset the balance position and the electrical limit switch.
2. Why does the controller panel operate with "Di Di Di" abnormal noises?
- As for this, it means the resistance on controller board is broken, if you have professional tools to check,
- then replace that broken resistance, if not, replace that controller panel.
3. Why does the barrier finish half operation of opening and closing?
- If uses our controller panel, you only need to find resistance R37 on controller panel, and repalce it is ok.
4. When barrier closed, why is there a 5 degree angle of inclination?
- the model is not good, and the gear doesn't fit each other tightly.
- the barrier didn't adjust well, need to reset.
5. When barrier finish open, but it closes itself without any order control, what's the problem?
- To check the loop cable first, because the loop cable maybe brokem
- To check the motor sensor, if it is not set well, then reset it in the middle between two holes on sensor rod.
Service items
1.One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltae.
3. The surfaces of the system destroyed by wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining authority of this product instruction and service article belong to the production factory.
