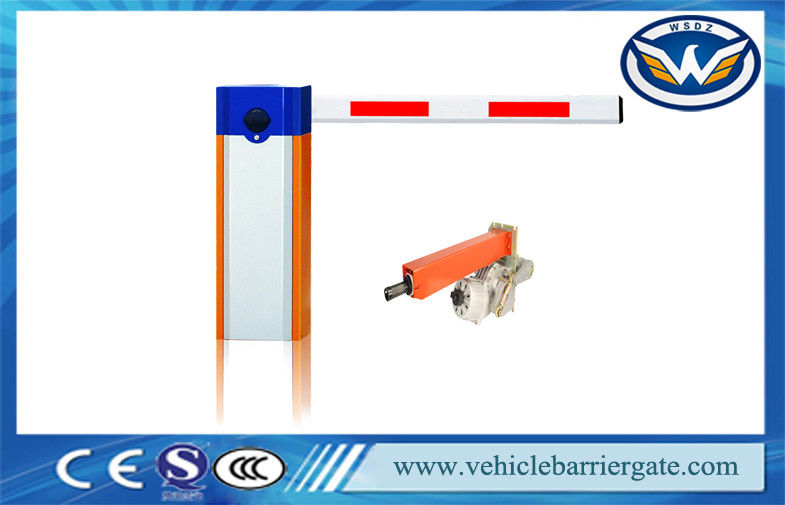

Electric Parking Barrier Gate , Vehicle Access Control System Parking Gate Arm
Place of Origin | China |
---|---|
Hàng hiệu | WONSUN |
Chứng nhận | CE, ISO, SGS |
Model Number | WSTP-116 |
Số lượng đặt hàng tối thiểu | 1pc |
Giá bán | negotiation |
Packaging Details | Packed in bubble wrap firstly, and then reinforced with carton for outer packing. |
Thời gian giao hàng | 3-7 ngày làm việc sau khi nhận được thanh toán của bạn |
Điều khoản thanh toán | T / T, Công Đoàn phương tây, Money Gram, Thương Mại Alibaba Đảm Bảo, Paypal vv, |
Khả năng cung cấp | 1000 bộ / tháng |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct name | Electric Parking Barrier Gate For Vehicle Access Control System | OEM/ODM | Supported |
---|---|---|---|
Operation Time | 0.6s, 1s, 1.8s, 3s, 6s, Optional | Color | yellow, Orange, Black, Blue, customize optional |
arm type | straight, articulated, fence arm | voltage | 220V or 110V |
Điểm nổi bật | boom barrier gate,Hàng rào điện bùng nổ |
Electric Vehicle LED Light Rubber Automatic Barrier Gate With Arm Auto Reverse
Parking Barrier Gate:
Key words:boom barrier, barrier gate, car park barrier, barrier gate system, gate barrier, traffic barrier, automatic barrier, car parking system, barrier system, parking barrier, road barrier, intelligent automatic barrier, boom barrier gate, automatic barrier gate system;
Functions & Features:
1. Manual release device to operate the barrier when power off.
2. Motor cooling fan to avoid the over-heating possibility
3. Automatic reversing when the barrier boom meets the obstruction
4. Auto closing realization through menu setting on the control panel
5. Interfaces available for infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), traffic light
6. RS485 Communication Module is compatible
Technical data:
1. Electronic box working temperature:-40~+75 degree centigrade.
2. Power: 220V±10%, 110V±10%, 50/60HZ
3. Rated power: 80W
4. Relative humidity: ≤90%
5. Remote control distance: ≥30m
6. Net weight: 56kgs
7. Speed: 1S, 3S, 6S
8. Protection Class: IP54
Optional accessories:
Loop detector, Photocell, capacitor, control board, remote controller
Adavantages:
1. Special driving structure, no gears, non-belt driving,maintenance free, high stability, longer life.
2. Special balancing structure design makes the barrier arm has the feature of slow-starting, fast-running, slow-stopping.
3. It is running without arm-shaking.
4. The brarrier arm is 90 degrees running which excluding the failure caused 360 degrees running.
5. Special low-speed aluminum housing motor integrated gearbox design, low noise, fast heat-dissipation.
6. The driving mechanism has the desiging of intelligent overheating protection system, in frequent use, it can
control the warming of the motor, makes the motor not burned easily.
7. The main engine adopts mechanical limit switch and photoelectric limit switch dual protection, to avoid the
problems caused by using traditional magnetic switch which is easily interfered by the external environment.
8. Barrier gate can be chosen from 1m to 6m.
Parking List:
Items | quantity | items | quantity |
Paint-coated case | 1 | motor | 1 |
Transmission | 1 | limit switch | 1 |
Barrier arm | 1 | capacitor | 1 |
Spring | 1 | circuit board | 1 |
Remote control device | 2 | console control device | 1 |
Installation kit | 1 |
Specifications:
Model | Boom Shape | Max Boom Length | Speed |
WST1151 | Straight boom | 6m | 6 seconds |
WST1152 | Straight boom | 4.5m | 3 seconds |
WST11521 | 90 degree, Articulated boom | 5m | 6 seconds |
WST11522 | 90 degree, Articulated boom | 3m | 3 seconds |
WST11561 | 180 degree, Articulated boom | 5m | 6 seconds |
WST11562 | 180 degree, Articulated boom | 3m | 3 seconds |
WST11581 | Two fence boom | 4.5m | 3s and 6s |
WST11582 | Three fence boom | 4.5m | 3s and 6s |
Comunicate with customer:
1. Are you manufacturer or trade company? We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007. |
2. What is your MOQ? As for usual order, there is no MOQ; For OEM order, at least 30 sets. |
3. What is your delivery time? As for usual order, it is 3-5 days after received your payment with 50 sets order quantity. For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity. |
4. What is the terms of payment? 30%-40% advance deposite, 60%-70% balance before shipment for large quantity. |
5. How long will your gate barrier working? Gate barrier life span is 5-10 years. |
6. What should we do if there have problems during using? My dear friend, We have 1 year guarantee. Any gate barrier problems you have, Welcome email or call me! We will provide our best professional service for you. |
7.How to import your machines? * We will prepare gate barrier and shipment for you after payment; * We will give you bill of loading after gate barrier depart our shipping port; * Our shipping agent will contact you when gate barrier arrival |
