Chi tiết sản phẩm
Place of Origin: China
Hàng hiệu: WONSUN
Chứng nhận: CE, ISO, SGS
Model Number: WSTP-120
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1pc
Giá bán: Có thể đàm phán
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Thời gian giao hàng: 3-7 ngày làm việc sau khi nhận được thanh toán của bạn
Điều khoản thanh toán: T / T, Công Đoàn phương tây, Money Gram, Thương Mại Đảm Bảo, Paypal vv,
Khả năng cung cấp: 1000 bộ / tháng
Color:: |
yellow, orange, blue, customized optional |
Speed:: |
0.6s, 1s, 1.8s, 3s, 6s |
Power Supply:: |
AC 220±10%, 110±10% 50/60HZ |
Working temperature:: |
-40°to 85° |
Frequency:: |
60HZ/50HZ |
Arm material:: |
Aluminum alloy |
Color:: |
yellow, orange, blue, customized optional |
Speed:: |
0.6s, 1s, 1.8s, 3s, 6s |
Power Supply:: |
AC 220±10%, 110±10% 50/60HZ |
Working temperature:: |
-40°to 85° |
Frequency:: |
60HZ/50HZ |
Arm material:: |
Aluminum alloy |

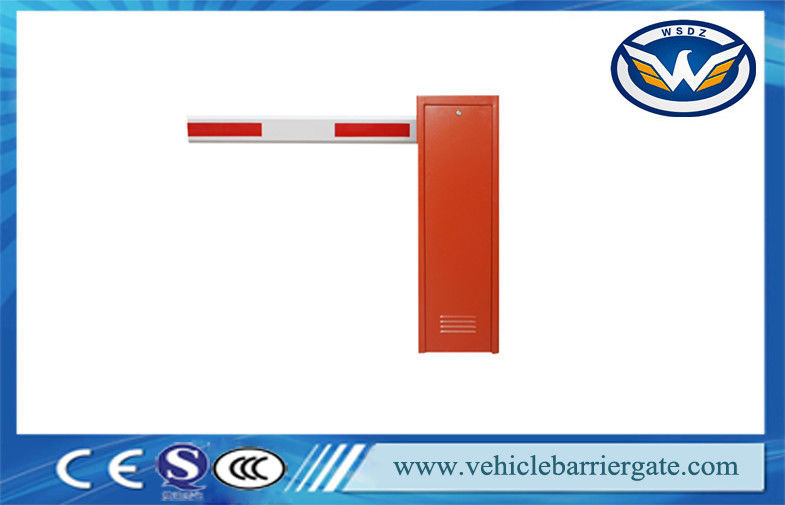

5 Million Operation Times Heavy Duty Toll Barrier Gate With Aluminum Alloy Arm
Functions & Features
1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)
Specifications
Power 250W
Housing Size 344*290*1090 mm
Housing color orange
Rail type straight
Rail material Aluminum Aloy
Rail lifting time 1S 1.8S (fast) /3S 6S(ordinary)
Rail length 4.5m(fast) / 6m(ordinary)
MCBF ≥5,000,000 times
Motor speed 3 0r/min
Wave pressure optional
Bumping bounce back optional
Working Temperature -10°C to +45°C
Working environments indoor,outdoor
Relative humidity <90% coagulation free
Parking & Shipping:
| Packing list | |||
| Name | Specifications | Quantity | Remarks |
| Machine core | Good in working | 1 | Main part |
| Barrier arm | Straight, folding or fence arm | 1 | Optional |
| Boom press board | 1 | Fixing the boom | |
| Self-tapoing screw | ST4*16 | Fixing the boom | |
| Self-tapoing screw | st3*10 | 4 | Fixing the boom |
| Supporting pole | 1 | Fupporting the boom | |
| Expanion bolt | M16*150 | 4 | Fixing the case |
| Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
| Clutch key | 1 | clutch device | |
| Case Key | 2 | for case and cover locking | |
| Balance spring | According to length of barrier arm | 1 | for sapre usage |
| Remote emitter | less than 30m is available | 1 | For remote control |
| Remote conrol handles | less than 30m is available | 2 | For remote control |
| Instruction | in English | 1 | For reference |
| RS485 interface | 1 | Optional | |
| Disc | 1 | Optional | |
| Communication Mould | 1 | Optional | |
| Cover head | 1 | 3 years without fading | |
| Expanion nut | M8 | 4 | Fixing the supporting pole |
Communication with customers
1) Q: Connected power and press open/close button but boom barrier gate no action?
|
A |
Reason |
Solution |
|
1 |
Fuse blown |
Check fuse and power in controller |
|
2 |
Battery of remote control powered off |
Change a new one |
|
3 |
External protection circuit break or at protecting status |
Open the barrier door and click OPEN/CLOSE button on control box |
|
4 |
Same frequency interference |
Check photocell and loop detector |
2) Q:Connected power and press open/close button, boom barrier gate will move but even when it is at right position, the motor still running and not stop?
|
A |
Reason |
Solution |
|
1 |
Limit switch |
Adjust the horizontal/vertical limit switch to correct position |
|
2 |
Main controller failure |
Change a new one |
3) Q: Motor running but boom barrier gate arm no action?
|
A |
Reason |
Solution |
|
1 |
Barrier arm at 45° position where is hard to move |
Unlock clutch and manually rotate arm to horizontal or vertical position then try again |
|
2 |
Tension of balancing spring not suitable |
Adjust spring exactly |
|
3 |
Low working voltage |
Check the voltage and power |
4) Q: When opening/closing,boom barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?
|
A. |
Reason |
Solution |
|
1 |
Length adjustment of connecting rod not correct |
Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line |
|
2 |
Nuts on the limit switch loose |
Tighten the nuts when arm at 90° vertical and 180° horizontal position |
