Chi tiết sản phẩm
Place of Origin: China
Hàng hiệu: WONSUN
Chứng nhận: CE, ISO, SGS
Model Number: WSTP-127
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1pc
Giá bán: Có thể đàm phán
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Thời gian giao hàng: 3-7 ngày làm việc sau khi nhận được thanh toán của bạn
Điều khoản thanh toán: T / T, Công Đoàn phương tây, Money Gram, Thương Mại Đảm Bảo, Paypal vv,
Khả năng cung cấp: 1000 bộ / tháng
Power Supply:: |
AC 220±10%, 110±10% 50/60HZ |
Color:: |
yellow, orange, blue, customized optional |
Material: |
2mm Cold Roll Plate Or Galvanized Plate |
Opening & Closing time:: |
0.6 / 1/1.8 / 3 / 6 sec. optional |
Motor power:: |
120W |
Maximum Remote Control Distance:: |
30m |
Power Supply:: |
AC 220±10%, 110±10% 50/60HZ |
Color:: |
yellow, orange, blue, customized optional |
Material: |
2mm Cold Roll Plate Or Galvanized Plate |
Opening & Closing time:: |
0.6 / 1/1.8 / 3 / 6 sec. optional |
Motor power:: |
120W |
Maximum Remote Control Distance:: |
30m |

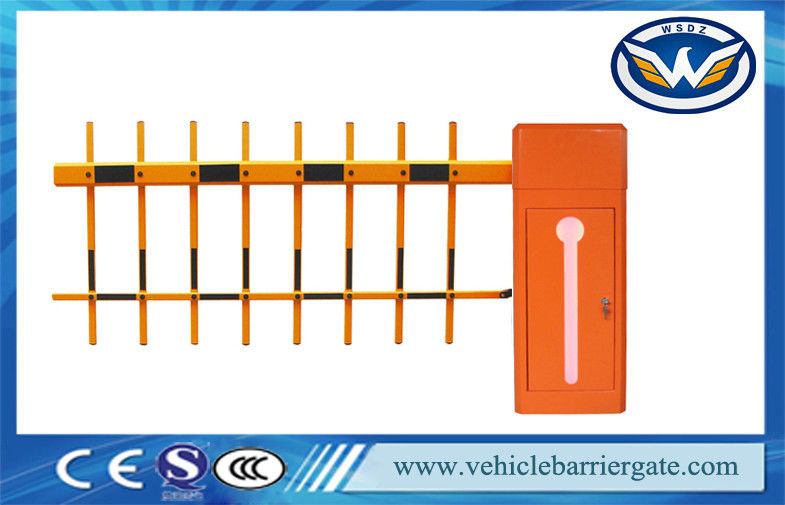

Manual Release Parking Barrier Gate For Smart Parking Lot System
Quick details:
Model: WSTP-127
1. Straight boom arm length 1-6 m, Speed time is 6S/4s
2. Straight boom arm length 1-3.5m. Speed time is 1.8s
3. Straight boom arm length 1-3 m, Speed time is 1s
4. Straight boom arm length 1-2.5m, Speed time is 0.6s/0.8s
Specifications:
| Model | WSTP-127 |
| Size | 360*290*1020 mm |
| Voltage | AC 220V/110V±10%, 50/60HZ |
| Rated Power | 120W |
| Operation time | 0.6s, 1s, 1.8s, 3s,4s,6s. Customized |
| Working Temperature | -40℃~+75℃ |
| Material |
Galvanized plate or Cold roll plate, 2.0mm thickness sheet 3 years without rust, shedding and fading |
| Spring And Bearing | Heat Treatment: more durable, more than 5 million times through operation testing |
|
Remote Control Distance
|
Usually more than 30 meters, if there is less obstacles, even 50 meters or more |
| Packing Size | 1025*375*470mm , with seven layers carton case
inside with air bubble film for protection |
| Delivery | By Sea: big order(more than 100 sets), Cheap, suggested
By Air: small order(1-15 sets), quick and cheap, suggested |
Functions & Features:
1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)
Gate Arm Type:
1. Straight arm lengt size : 100*45mm. 80*45mm
2.Retractable arm size: 86*45mm
Parking list:
| Items | quantity | items | quantity |
| Paint-coated case | 1 | motor | 1 |
| Transmission | 1 | limit switch | 1 |
| Barrier arm | 1 | capacitor | 1 |
| Spring | 1 | circuit board | 1 |
| Remote control device | 2 | console control device | 1 |
| Installation kit | 1 |
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
FAQ:
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.
2. What is your MOQ?
As for usual order, there is no MOQ; For OEM order, at least 30 sets.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.
4. What is the terms of payment?
30%-40% advance deposite, 60%-70% balance before shipment for large quantity.
5. How long will your gate barrier working?
Gate barrier life span is 5-10 years.
6. What should we do if there have problems during using?
My dear friend, We have 1 year guarantee. Any gate barrier problems you have, Welcome email or
call me! We will provide our best professional service for you.
Applications:
Barrier Gate with rubber boom uses the third generation motor. It is stable and has long service life performance,
running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
