Chi tiết sản phẩm
Place of Origin: China
Hàng hiệu: WONSUN
Chứng nhận: CE, ISO, SGS
Model Number: WSTP-115
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1pc
Giá bán: Có thể đàm phán
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Thời gian giao hàng: 3-7 ngày làm việc sau khi nhận được thanh toán của bạn
Điều khoản thanh toán: T / T, Công Đoàn phương tây, Money Gram, Thương Mại Đảm Bảo, Paypal vv,
Khả năng cung cấp: 1000 bộ / tháng
Power Supply:: |
AC 220±10%, 110±10% 50/60HZ |
Working temperature:: |
-40°to 75° |
Color:: |
yellow, orange, blue, customized optional |
Material: |
2mm Cold Roll Plate Or Galvanized Plate |
Name: |
Heavy Duty Security Arm Parking Automatic Barrier Gate for Access Control |
intensive use: |
heavy duty |
Power Supply:: |
AC 220±10%, 110±10% 50/60HZ |
Working temperature:: |
-40°to 75° |
Color:: |
yellow, orange, blue, customized optional |
Material: |
2mm Cold Roll Plate Or Galvanized Plate |
Name: |
Heavy Duty Security Arm Parking Automatic Barrier Gate for Access Control |
intensive use: |
heavy duty |

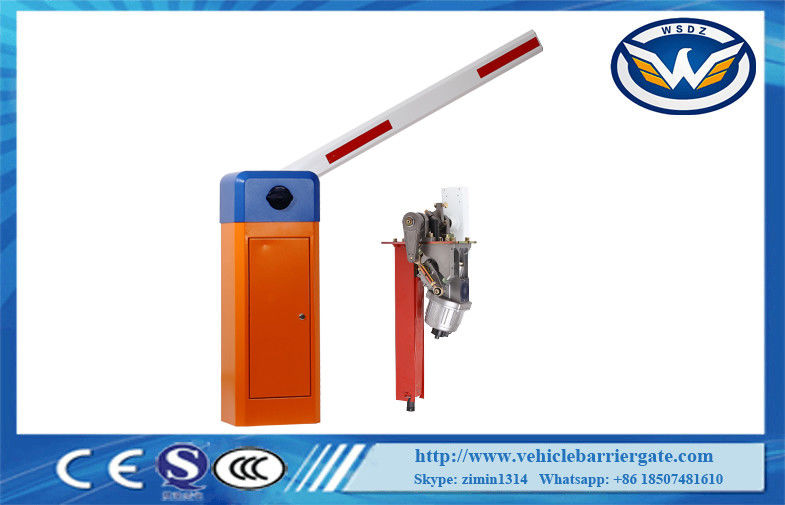

Heavy Duty Security Arm Parking Barrier Gate for Access Control
Technical Data
1. WSTP-115B
2.Running time: 0.6S, 1S, 1.8S, 3s, 6s
3.Boom type: straight
4.Max Boom length: 4.5m, 6m
5.Boom dimension (WxH): 45x80mm
6.Boom weight: 4.5kg, 6kg
7.Voltage: 220V ± 10%, 110V ± 10%
8.Frequency: 50/60Hz
9.Motor voltage: 220V
10.Power: 120W
11.Working temperature: -40~75
Specifications:
| Running time | 1sec | 3 sec | 6sec | 3 sec | 6 sec | 3 sec | 6sec | 6 sec | 6 sec |
| Boom type | straight | 90 degree folding | 180 degree folding | 2 fencing | 3 fencing | ||||
| Max boom length | 3m | 4.5m | 6m | 3m | 5m | 3m | 5m | 4.5m | 4m |
| Boom dimension(w*h) | 40*80mm | 45*100mm | |||||||
| Boom weight | 3kg | 4.5kg | 6kg | 6.5kg | 8kg | 9kg | 11kg | 7kg | 7.5kg |
| Voltage | 220V±10%, 110V±10% | ||||||||
| Frequency | 50/60 Hz | ||||||||
| Motor voltage | 220V | ||||||||
| power | 120W | ||||||||
| Working temperature |
-35centigrade +75centigrade |
||||||||
| Protection grade |
IP44 |
||||||||
Functions & Features
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
FAQ:
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.
2. What is your MOQ?
As for usual order, there is no MOQ; For OEM order, at least 30 sets.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.
4. What is the terms of payment?
30%-40% advance deposite, 60%-70% balance before shipment for large quantity.
5. How long will your gate barrier working?
Gate barrier life span is 5-10 years.
